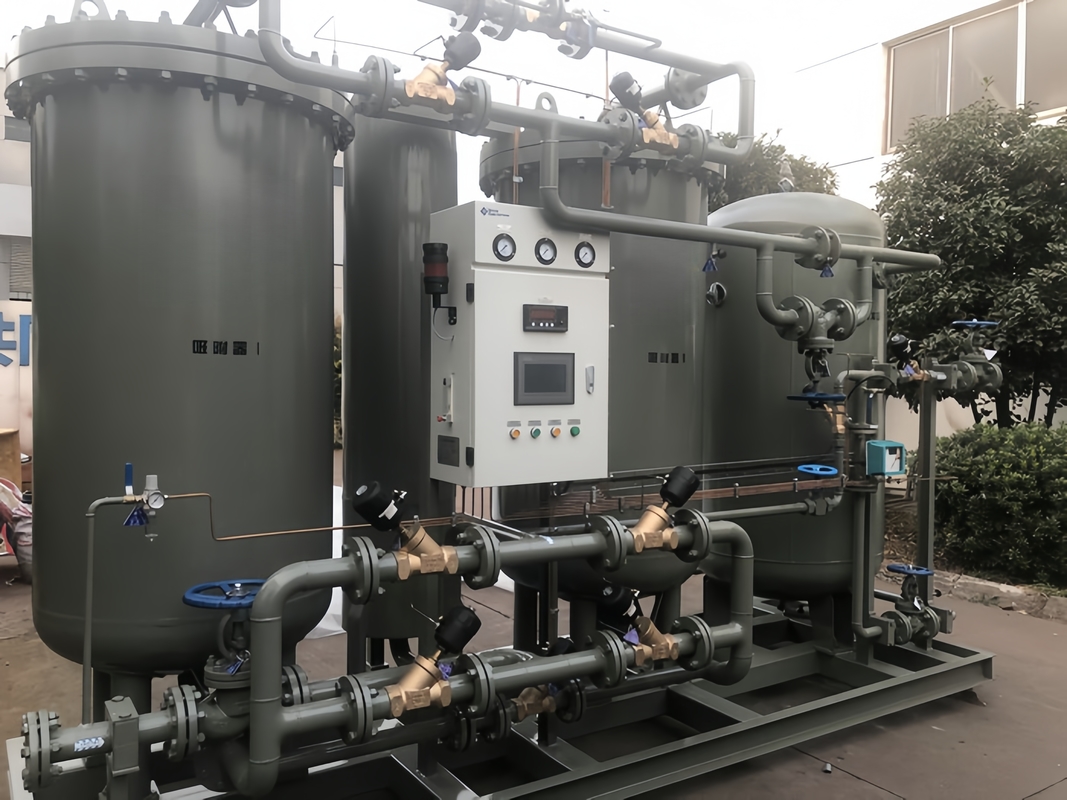

Multifunctional PSA Nitrogen Generator Arbon Molecular Sieve Adsorbent

Multifunctional PSA Nitrogen Generator Arbon Molecular Sieve Adsorbent

  • Multifunctional PSA Nitrogen Generator Arbon Molecular Sieve Adsorbent
Multifunctional PSA Nitrogen Generator Arbon Molecular Sieve Adsorbent
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/per year
Contact Now
Detailed Product Description
Name: PSA Nitrogen Generato Certificates: /BV/ISO/CCS/TS
Capacity: 5-5000 Nm3/h Purity: 95%-99.9995%
Discharge Pressure: 0.3-0.6 Mpa Feature: Multifunctional
High Light:

psa nitrogen generation system

,

psa nitrogen gas generator

Multifunctional PSA Nitrogen Generator Arbon Molecular Sieve Adsorbent



PSA Nitrogen Generator Priciple


PSA technology allows nitrogen molecules to be isolated from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS), the adsorbent in the generator, retains all those molecules and only lets the nitrogen pass through to the outlet. While the CMS in one vessel regenerates a second, connected vessel goes through the same adsorption cycle. These two connected vessels work together to ensure a near- continuous flow of nitrogen gas.



PSA Nitrogen Generator Figures



Pressure:5-10 bar

Pressure dew point:≤10degree

Oil content ≤0.003mg/m3

Air -change with the Nitrogen& Oxygen

Product nitrogen

Pressure:≤9bar

Normal pressure dew point:≤-40degree

Purity:95%-99.9995%

Nitrogen capacity :5-5000Nm3/H



PSA Nitrogen Generator Application:



1. Metallurgy: For anneal protection, agglomeration protection, nitrogen, furnace washing and

blowing ,etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material,

copper process, metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber,

plastic, tire, polyurethane, biological technology, intermediate, etc.

3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic

products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic

porcelain, electronic copper tape, battery, electronic alloy material, etc.

During the last 10 years,about 98% old customers firmly choose SINCE



PSA Nitrogen Generator Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



Multifunctional PSA Nitrogen Generator Arbon Molecular Sieve Adsorbent 0



Why they always choose SINCE?



Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY)

 certificate,SINCE also can manufacture marine nitrogen generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
