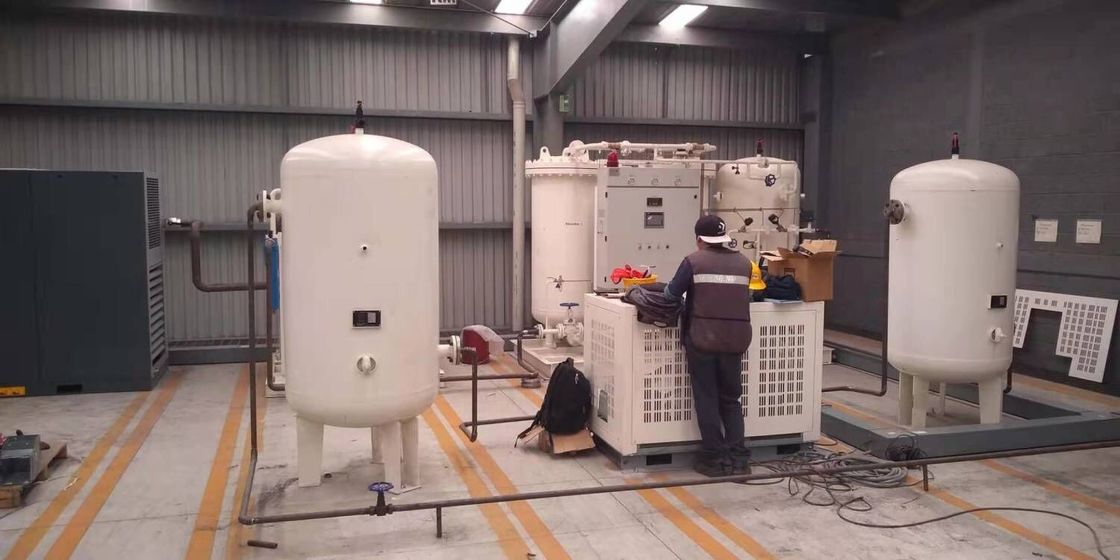

Oil And Gas PSA Type Nitrogen Generator , Nitrogen Generation System BV CCS Certificate

Oil And Gas PSA Type Nitrogen Generator , Nitrogen Generation System BV CCS Certificate

PSA Type Nitrogen Generator working principle:

PSA technology allows nitrogen molecules to be isolated from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS), the adsorbent in the generator, retains all those molecules and only lets the nitrogen pass through to the outlet. While the CMS in one vessel regenerates a second, connected vessel goes through the same adsorption cycle. These two connected vessels work together to ensure a near-continuous flow of nitrogen gas.

PSA Type Nitrogen Generator Introduction:

N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.

When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,

the N2 gas is absorbed and O2 is obtained by separation.

The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

When one tower produces N2, another tower release the N2 by reducing the pressure to get the

renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration

to output N2 continuously.

PSA Type Nitrogen Generator Specifications:

Product nitrogen

Pressure:≤9bar

Normal pressure dew point:≤－40degree

Purity:95%-99.9995%

Nitrogen capacity :5-5000Nm3/H

Application:

  Chemical Manufacturing

. Lase Cutting

. Tire Filling

. Pharmaceutical

. Marine

. Electronics

. Food Processing & Packaging

. Plastic

. Heat Treatment

. Others

During the last 10 years,about 98% old customers firmly choose SINCE

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
