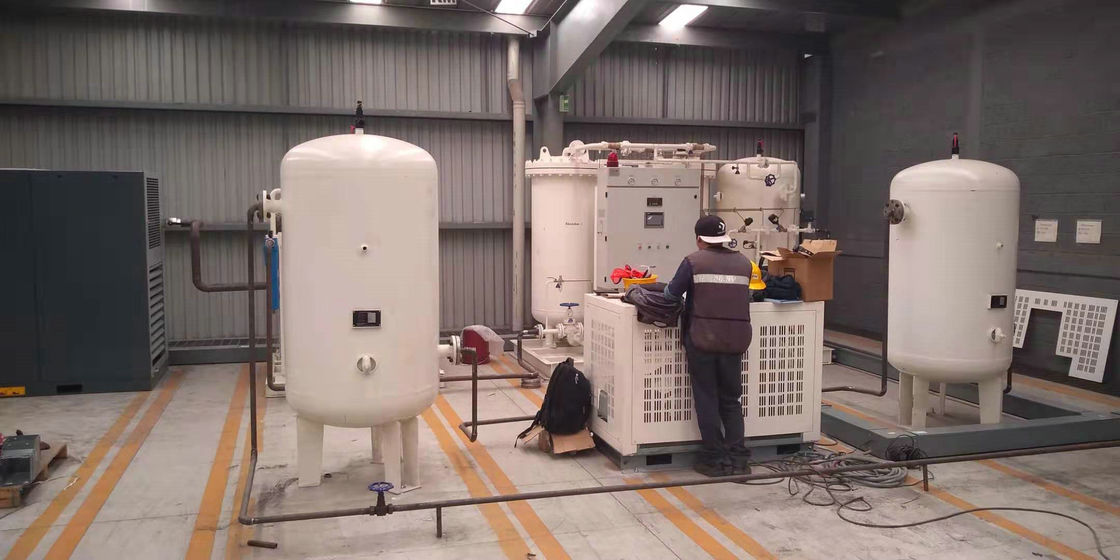

Large PSA Nitrogen Plant , High Pressure Nitrogen Generator Air Tank

Large PSA Nitrogen Plant , High Pressure Nitrogen Generator Air Tank

  • Large PSA Nitrogen Plant , High Pressure Nitrogen Generator Air Tank
Large PSA Nitrogen Plant , High Pressure Nitrogen Generator Air Tank
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PSA Nitrogen Plant
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Name: PSA Nitrogen Plant Capacity: 5-5000 Nm3/h
Purity: 95%-99.9995% Power Supply: 220V,50Hz
Operate Power: 1 KW Feature: High Pressure
High Light:

psa nitrogen generation system

,

psa nitrogen gas generator

Large PSA Nitrogen Plant , High Pressure Nitrogen Generator Air Tank



PSA Nitrogen Plant  Introduction:



N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.

When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,

the N2 gas is absorbed and O2 is obtained by separation.

The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

When one tower produces N2, another tower release the N2 by reducing the pressure to get the

renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration

to output N2 continuously.



PSA Nitrogen Plant Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



PSA Nitrogen Plant Figures:



Resource: Air

Pressure:5-10 bar

Pressure dew point:≤10degree

Oil content ≤0.003mg/m3

Air -change with the Nitrogen& Oxygen



Product nitrogen

Pressure:≤9bar

Normal pressure dew point:≤-40degree

Purity:95%-99.9995%

Nitrogen capacity :5-5000Nm3/H





SUZHOU SINCE GAS SYSTME CO.,LTD is a high-tech joint-stock enterprises , which is located in Tai Hu lake of beautiful Yangtze river delta-Suzhou high and new technology develop zone, It covers an area of about 20,000 square meters. It has 4000 square meters of modern industrial plant and 1200 square meters of commercial intelligent office.


Our company devoting variety kinds of gas equipment creating,developing, designing, manufacturing, sale&service, providing professional industrial gas and equipped product.
