High Safety Liquid Ammonia Cracking Hydrogen Production CE BV Certificate

High Safety Liquid Ammonia Cracking Hydrogen Production CE BV Certificate

  • High Safety Liquid Ammonia Cracking Hydrogen Production CE BV  Certificate
High Safety Liquid Ammonia Cracking Hydrogen Production CE BV  Certificate
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: ANH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Material: Carbon Steel/stainless Steel Capacity: 5-1000Nm3/h
Dew Point: -70℃ Supply Power: 380V/460V/415V/3P/50/60 Hz
Catalyst: Nickel Catalyst Raw Material: Liquid Ammonia
High Light:

Ammonia Gas Generator

,

Ammonia Cracker Unit



High Safety Liquid Ammonia Cracking Hydrogen Production CE BV Certificate





Condition:New

Type:Resistance Furnace

Usage:Heat Treatment Furnace

Dimension(L*W*H):Various

Weight:3-20ton

Warranty:12 months

After-sales: Service Provided:Engineers available to service machinery overseas

Quality:superior

Design:novel

Price:competitive

Rated heating power of purifier (kw):2~10

Rated ammonia consumption (kg/h):2~16

Catalyzer:Nickel catalyst

Raw material:Liquid Ammonia



Introduction:

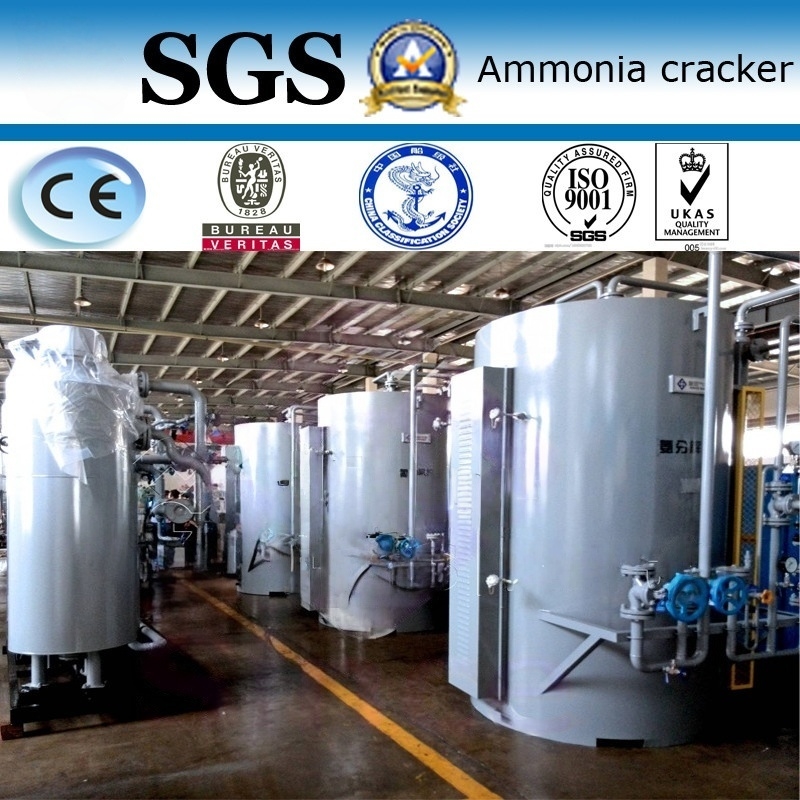

This series of ammonia decomposition generator is composed by decomposition machine, purifier

and electric control system. This machine decomposes ammonia into a kind of mixed gas which include 75% hydrogen and 25% nitrogen. The mixed gas generated is mainly used as protection atmosphere in powder metallurgy reduction, sintering, metal heat treatment, electronics, chemistry industry and ceramics. Because of low lost of gas generating, this series of ammonia decomposition generator is specially suitable to be used as accessory equipment of industries mentioned above.

Product feature:
Compact design, convenient installation, the core part of cracking system is made of INCO ALLOYS,which is

 the material of corrosion-resistant, Alka-resistant and Acid-resistant, service life is more than 10 years.
Heat preservation of furnace is full fire structure, with the advantage of rapid temperature rise.
Heat element is made of full alloy, heating type is plug fuse, it's no need to stop the gas when replace

the heat elements.Alarm automatically when pressure has too higher or too lower.



Above is standard fittings, 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.
4. Characteristics
(1) Small investment

(2) Reliable performance and long service life

(3) Heating element

(4)  Thermal insulation material

(5) Electrical control

(6) Depressurization system

(7) Purification system

(8) Simple installation

(9) Easy operation and  maintenance

(10) High safety


Advantage:
Out pressure is adaptable between 0.05Mpa to 0.5Mpa
High security: Special furnace material, gas input and output system is special structure, which Max the

security.



About us:

1. Easy Fashion Industry

2. Specializing in industrial furnaces and equipment

3. Customizing furnaces according to customers' requirements

4. Advanced powder and metallurgy manufacturing and melting technology

5. Passed the ISO9001:2008 and international certificate like CE,CB,GS,etc.

6. Export to more than 15 countries in Europe,the Middle East,Southeast Asia,America,etc.
