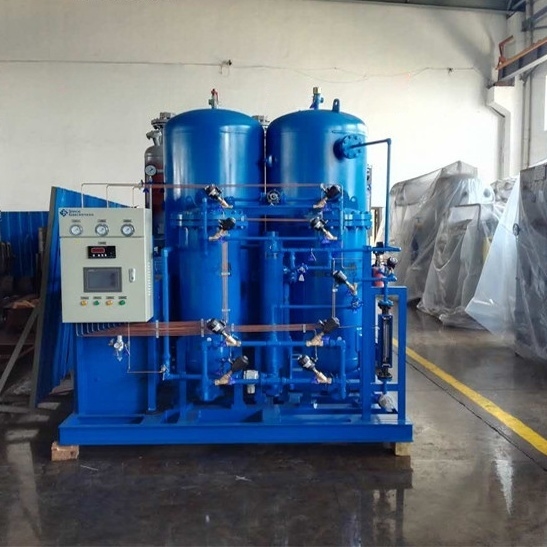

Heat Treatment High Purity PSA Nitrogen Generator / High Pressure Nitrogen Generator

Heat Treatment High Purity PSA Nitrogen Generator / High Pressure Nitrogen Generator

  • Heat Treatment High Purity PSA Nitrogen Generator / High Pressure Nitrogen Generator
Heat Treatment High Purity PSA Nitrogen Generator / High Pressure Nitrogen Generator
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN-100-595
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exporting package
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Purity: 99.9995% Capcity: 100 Nm3/h
Material: Carbon Steel Operation Method: Fully Automatic
Application: Laser Cutting Operate Pressure: 22 Bar
High Light:

sa nitrogen plant

,

psa nitrogen generation system


Heat treatment high purity with high pressure laser cutting nitrogen generator
Description:
(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008

N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal . When one tower produces N2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output N2 continuously.

Specifications:


No Model Capacity(Nm3/h) Purity Power(KW) Overall size(mm)

1
2
3
4

PN-3-39
PN-5-29
PN-5-295
PN-8-295

3
5
5
8

99.9%
99.5%
99%
95%



0.5



1800*1400*1500

5
6
7
8

PN-5-49
PN-8-39
PN-12-295
PN-15-29

5
8
12
15

99.99%
99.9%
99.5%
99%



0.5



1800*1400*1800

9
10
11
12

PN-10-49
PN-15-39
PN-25-295
PN-30-39

10
15
25
30

99.99%
99.9%
99.5%
99%



0.5



2000*1700*2250

13
14
15
16

PN-15-49
PN-22-39
PN-35-295
PN-45-29

15
22
35
45

99.99%
99.9%
99.5%
99%

0.5 2100*1800*2200

17
18
19
20

PN-20-49
PN-30-39
PN-50-295
PN-60-29

20
30
50
60

99.99%
99.9%
99.5%
99%

0.5 2200*1800*2200

21
22
23
24

PN-30-49
PN-45-39
PN-75-295
PN-88-29

30
45
75
88

99.99%
99.9%
99.5%
99%

0.5 2400*1900*2200

25
26
27
28

PN-40-49
PN-60-39
PN-100-295
PN-120-29

40
60
100
120

99.99%
99.9%
99.5%
99%

0.5 2500*2100*2500

29
30
31
32

PN-50-49
PN-70-39
PN-120-295
PN-140-29

50
70
120
140

99.99%
99.9%
99.5%
99%



0.5



2600*2200*2850

33
34
35
36

PN-60-49
PN-90-39
PN-160-295
PN-190-29

60
90
160
190

99.99%
99.9%
99.5%
99%



0.5



2800*2200*2500

37 PN-80-49 80 99.99% 0.5

38
39
40

PN-120-39
PN-200-295
PN-250-29

120
200
250

99.9%
99.5%
99%


0.5


3200*1400*2800

41
42
43
44

PN-100-49
PN-140-39
PN-250-295
PN-290-29

100
140
250
290

99.99%
99.9%
99.5%
99%



0.5



3500*1500*2800

... ... ... ... ... ...
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



Technical characteristics

1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out , it can not cause of molecular sieve pulverization phenomenon. equipped with the limit settlement alarm system,when it reach the floor level of journey,the equipment will sound and light alarm by itself.
3. Configured DCS remote control system interface,it can monitor the system operate condition through the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable,it also has various fault alarm.
8.It operates easily, runs stably, and has a high degree of automation, can realize no one operates.


Application: Heat treatment, laser cutting machine .
