| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Material: | Carbon Steel/Stainless Steel | Certificates: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew Point: | -70 ℃ | Operate Power: | 1 KW |
| Application: | For Cooper Pipe/cooper Strip/cooper Sheets Annealing | ||
| High Light: | sa nitrogen plant,psa nitrogen gas generator,nitrogen gas generator annealing |
||

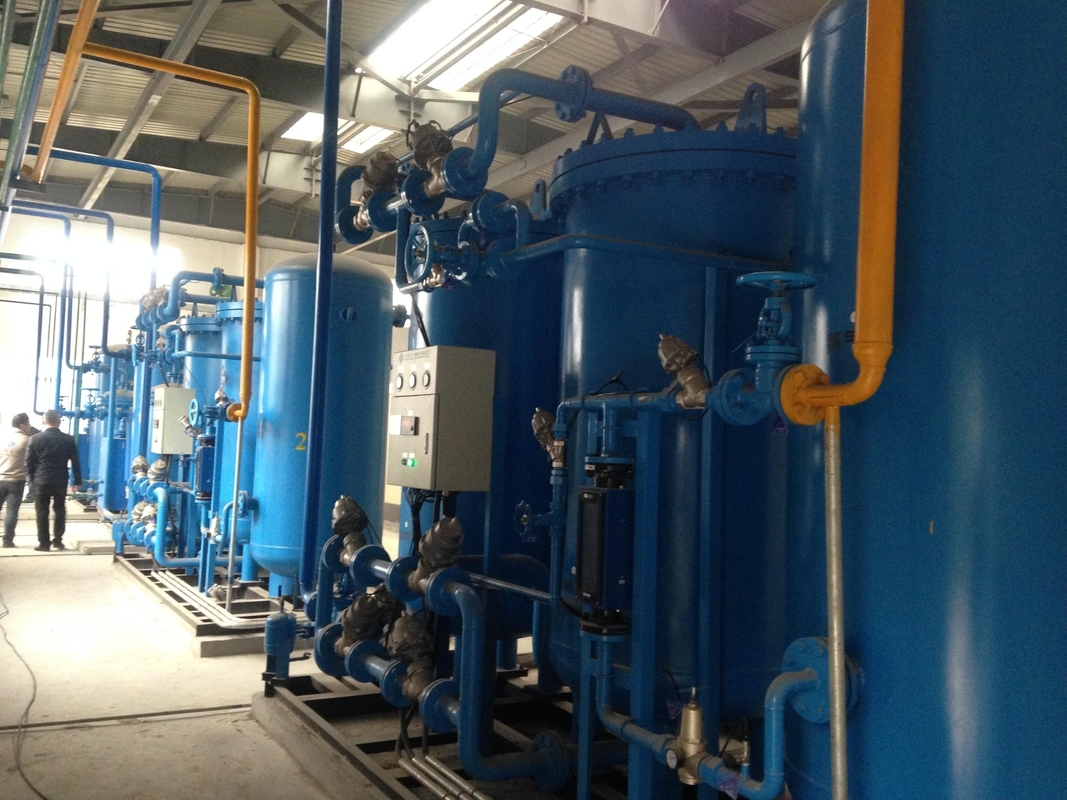

PN-300-595 99,9995% nitrogen gas generator for cooper pipe/cooper strip/cooper sheets annealing
PSA nitrogen generator
1) N2 Purity: 99-99.9995%
2) N2 Flow: 3-3000Nm3/h
3) N2 Pressure: 1-8 bar
4) SIMENS PLC Controller
1, Product Name: PSA nitrogen generator
A full installation requires air compressor, refrigeration dryer, filters, air tank, nitrogen generator and gas buffer tank.
2, Principle:
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbedin carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.
3, Application:
Food packing, Food storing, Electric & Electronic industry, Petro-gas & Oil field, Chemicals & Petro-chemicals, Coal-mine, Metallurgy, Pharmacy, SMT, Fire-resistance, lab, Air driving, and so on...
1. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Technical Features:
1.High purity.
The 99.9995% nitrogen gas is produced in one-time procedure without
purification devices.
2.Excellent energy-saving
Unique distribution of gas flow, advanced energy-saving technology,
excellent molecular sieve make HUILIN Nitrogen Generator energy-saving
achieve 10~20% than other do.
3.steady-going, long life-span
Unique clamping cylinder technology effectively extending the life of
molecular sieve.
4.High degree of automation
The automatic control technology could switch machines with one key,
and have remote and centralized operation with nobody control.
Which nitrogen generator model should I choose?
Different parameters are essential for your choice of generator.
• How big is your consumption?
• Is your consumption variable?
• Which pressure is required?
• What purity is required?
• do you already have a compressed air system?
