Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Name: | Nitrogen PSA Generator | Certificates: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew Point: | -70 ℃ | Operate Power: | 1 KW |
| Application: | Industrial | Other Name: | Air Products Nitrogen Generator |
| High Light: | sa nitrogen plant,psa nitrogen gas generator,5000 Nm3/h Nitrogen PSA Generator |
||

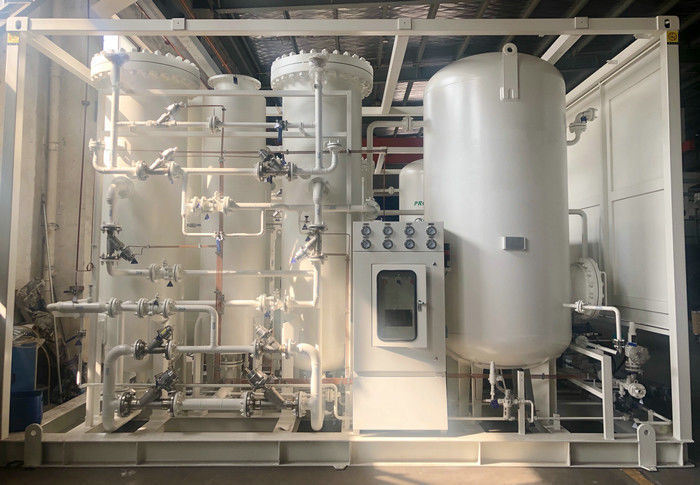

Industrial Nitrogen PSA Generator , High Pressure Air Products Nitrogen Generator
Nitrogen PSA GeneratorIntroduction:
The Nitrogen PSA Generator is based on PSA (Pressure Swing Adsorption) Technology, which uses some specific molecular sieves (CMS) to separate the nitrogen gas from the air. It is more and more popular used for on-site nitrogen supply and filling nitrogen cylinders.
Our PSA Nitrogen Generator consists of air compressor, air dryer, air filters, PSA nitrogen generator and related control system. The patented vessel design enable our PSA Nitrogen Generator a lowest energy consumption and best efficiency.
Nitrogen PSA Generator specifications:
1. Nitrogen capacity: 2~1000Nm3/h
2. Nitrogen purity: 90%, 99%, 99.5%, 99.9%, 99.99%, 99.999%...
3. Nitrogen pressure from the Nitrogen Generator: 1-7bar
Nitrogen PSA Generator Features
(1) The Nitrogen Generator is equipped with a stable Atlas Copco screw air compressor;
(2) The Nitrogen Generator is equipped with Siemens PLC and SMC or CKD valves;
(3) Fewer moving parts enable the Nitrogen Generator more reliable and less maintenance jobs;
(4) The NitrogenGenerator does not need foundation base;
(5) The Nitrogen Generator does not need cooling water;
Nitrogen PSA Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Contact Person: Jojo
Tel: +8613862022817
